Lithium Oxalate (Li₂C₂O₄)
Battery precursor • oxy‑salts • Battery
Handling note: Avoid dust generation; oxalates are harmful if
swallowed and may cause irritation. Store cool and dry in sealed
packaging. During calcination, off‑gases are produced—use
appropriate ventilation and abatement.
Purity (battery)
≥ 99.5–99.9%
Molar mass
≈ 101.9 g/mol
Lithium content
≈ 13.6% Li (theoretical)
Loss on drying
≤ 0.2–0.5%
Select grade by impurity limits (Fe/Na/K/Ca/Mg), particle size
distribution for reaction kinetics, and handling preference
(powder vs. microgranular). Specs are representative; shipped
material conforms to the lot COA.
| Parameter | Typical | Spec |
|---|---|---|
| Assay (Li₂C₂O₄) | ≥ 99.7% | ≥ 99.5% |
| Fe | ≤ 5 ppm | ≤ 10 ppm |
| Na / K (each) | ≤ 20 ppm | ≤ 50 ppm |
| Ca / Mg (each) | ≤ 20 ppm | ≤ 50 ppm |
| Moisture (H₂O) | ≤ 0.15% | ≤ 0.20% |
| Particle size (D50) | 5–20 μm | as ordered |

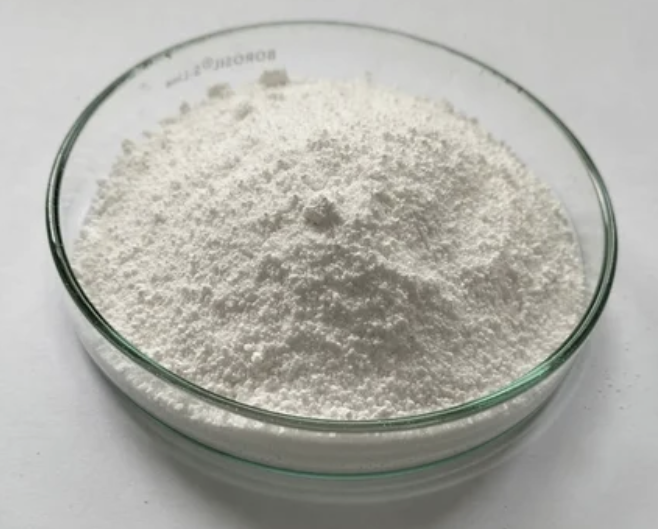

| Appearance | white crystalline powder | conforms |
| Parameter | Typical | Spec |
|---|---|---|
| Assay (Li₂C₂O₄) | ≥ 98.5% | ≥ 98.0% |
| Total alkali (Na+K) | ≤ 0.10% | ≤ 0.20% |
| Fe | ≤ 30 ppm | ≤ 50 ppm |
| Moisture (H₂O) | ≤ 0.30% | ≤ 0.50% |
| Particle size | 20–80 mesh or milled | as ordered |
| Appearance | white to off‑white powder | conforms |
| Parameter | Typical | Spec |
|---|---|---|
| Form | microgranular, low‑dust | conforms |
| Assay (Li₂C₂O₄) | ≥ 99.5% | ≥ 99.3% |
| Bulk density | 0.7–0.9 g/mL | report |
| Attrition | reduced fines | — |
| Appearance | free‑flowing granules | conforms |
| Parameter | Typical | Spec |
|---|---|---|
| SSA (BET) | higher surface vs. standard | as ordered |
| Assay (Li₂C₂O₄) | ≥ 99.5% | ≥ 99.3% |
| Particle size (D50) | 2–8 μm | as ordered |
| Notes | supports faster calcination | — |
| Appearance | fine white powder | conforms |
| Applications | Packaging | Storage & Handling |
|---|---|---|
|
• Battery precursor: co‑precipitation/solid‑state routes;
calcination to Li₂CO₃ for cathode blends.
• Specialty ceramics and reagents. • R&D: tuning PSD/SSA to balance reactivity and handling. |
• 25 kg PE‑lined bags • 25 kg fiber drums • 500–1000 kg
FIBC.
• Small packs for R&D/QC trials. |
• Keep dry, sealed, away from acids; avoid dust.
• Use local exhaust; standard PPE. • During calcination, ensure exhaust treatment for off‑gases. |
Quick process tip: **Theoretical Li₂CO₃ yield ≈ 0.725 kg per 1.0
kg Li₂C₂O₄** (molar basis). Adjust for moisture and assay.
