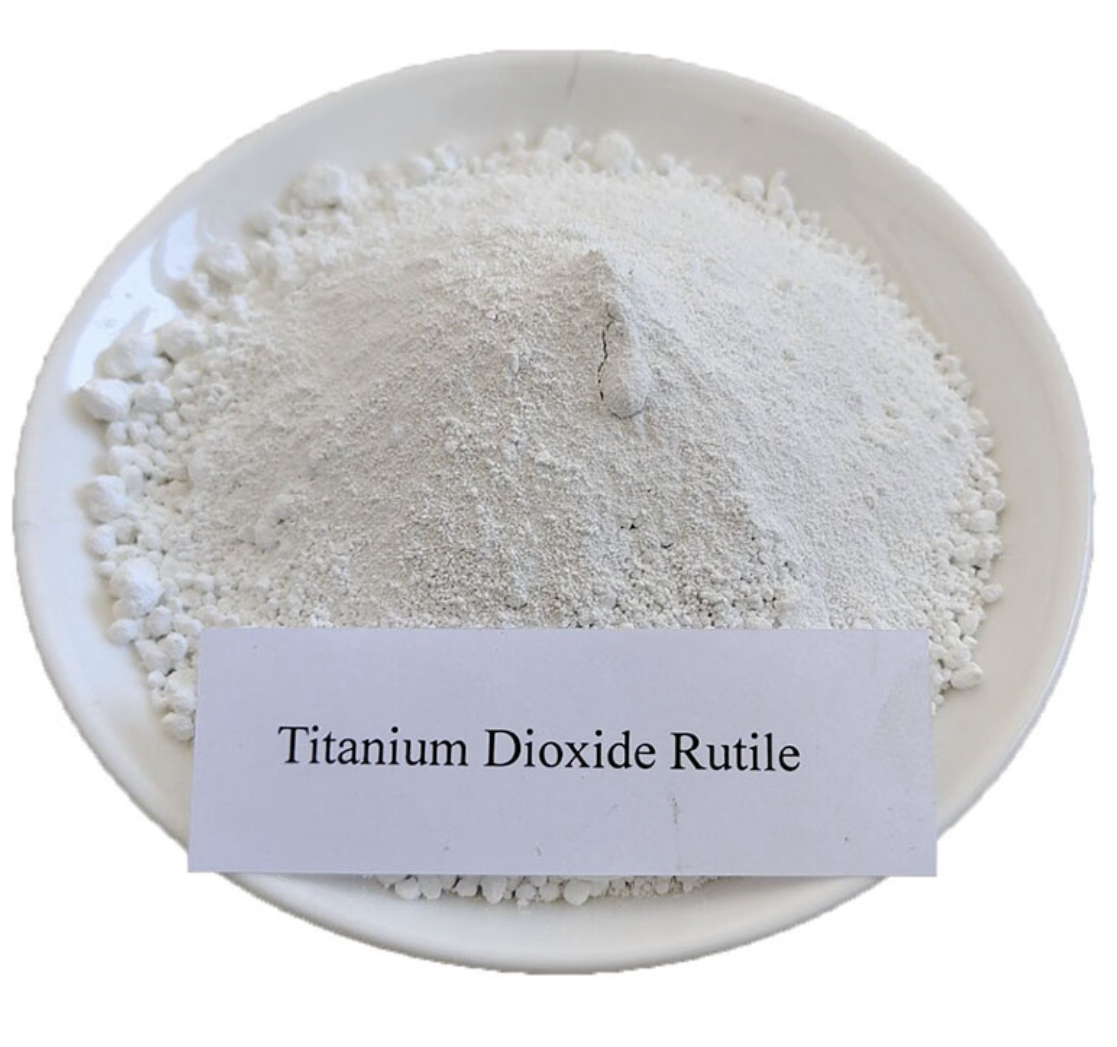

Titanium Dioxide (TiO₂) – Rutile
Pigment grade • coatings
TiO₂ content
≥ 93–95% (by grade)
Median size (D50)
≈ 0.22–0.28 µm
Oil absorption
15–22 g/100g
pH (aqueous slurry)
6.5–8.5
Tint strength (vs. std.)
≥ 100–110%
Representative ranges. Final acceptance limits (whiteness L* / b*
undertone, gloss, residue on 45 µm, volatile at 105 °C,
water‑soluble salts, FPV, abrasion) are application‑specific and
will match the lot COA.
| Parameter | Typical | Spec |
|---|---|---|
| TiO₂ content | ≥ 94–96% | ≥ 93% |
| D50 | ≈ 0.25 µm | 0.22–0.30 µm |
| Oil absorption | 18 g/100g | 15–22 g/100g |
| Tint strength (vs std.) | 105–110% | ≥ 100% |
| Whiteness (L* / b*) | L* ≥ 97 / b* ≤ 1.8 | per grade |
| pH (slurry) | 7.5 | 6.5–8.5 |
| Residue on 45 µm | ≤ 0.02% | ≤ 0.05% |
| Gloss (60°) | High | — |
| Surface treatment | Al/Si or Zr/Al | per grade |
| Parameter | Typical | Spec |
|---|---|---|
| Application | PP/PE/ABS/PVC masterbatch | — |
| Undertone | Blue | Blue/Neutral |
| D50 | ≈ 0.24 µm | 0.22–0.28 µm |
| Filter Pressure Value (FPV) | ≤ 0.4 bar/g | ≤ 0.8 bar/g |
| Volatile at 105 °C | ≤ 0.5% | ≤ 0.7% |
| Heat resistance | ≈ 300 °C (polyolefins) | — |
| Surface treatment | Zn‑Ti or Al‑organic | per grade |
| Parameter | Typical | Spec |
|---|---|---|
| Application | Solvent/UV inks; paper coatings | — |
| Oil absorption | 19–21 g/100g | ≤ 23 g/100g |
| Dispersion (Hegman) | ≥ 6.5 | ≥ 6.0 |
| Abrasion | Low | — |
| Electrical resistivity | High | — |
| Surface treatment | Use‑case | Notes |
|---|---|---|
| Al/Si (hydrous oxides) | Architectural & industrial coatings | Balanced gloss/chalking resistance; good dispersion. |
| Zr/Al | High‑durability & exterior | Improved weathering & chalk resistance. |
| Zn‑Ti (Zn‑modified) | Plastics/masterbatch | Blue undertone; reduced photo‑activity; low FPV. |
| Al‑organic | Plastics/ink | Organic treatment for flow and wetting in non‑polar systems. |
| Applications | Packaging | Storage & Handling |
|---|---|---|
|
• High‑hiding white pigment for coatings (architectural,
industrial).
• Plastics & masterbatch (PP/PE/PVC/ABS) with blue/neutral undertone options. • Printing inks and paper coating for brightness/opacity. |

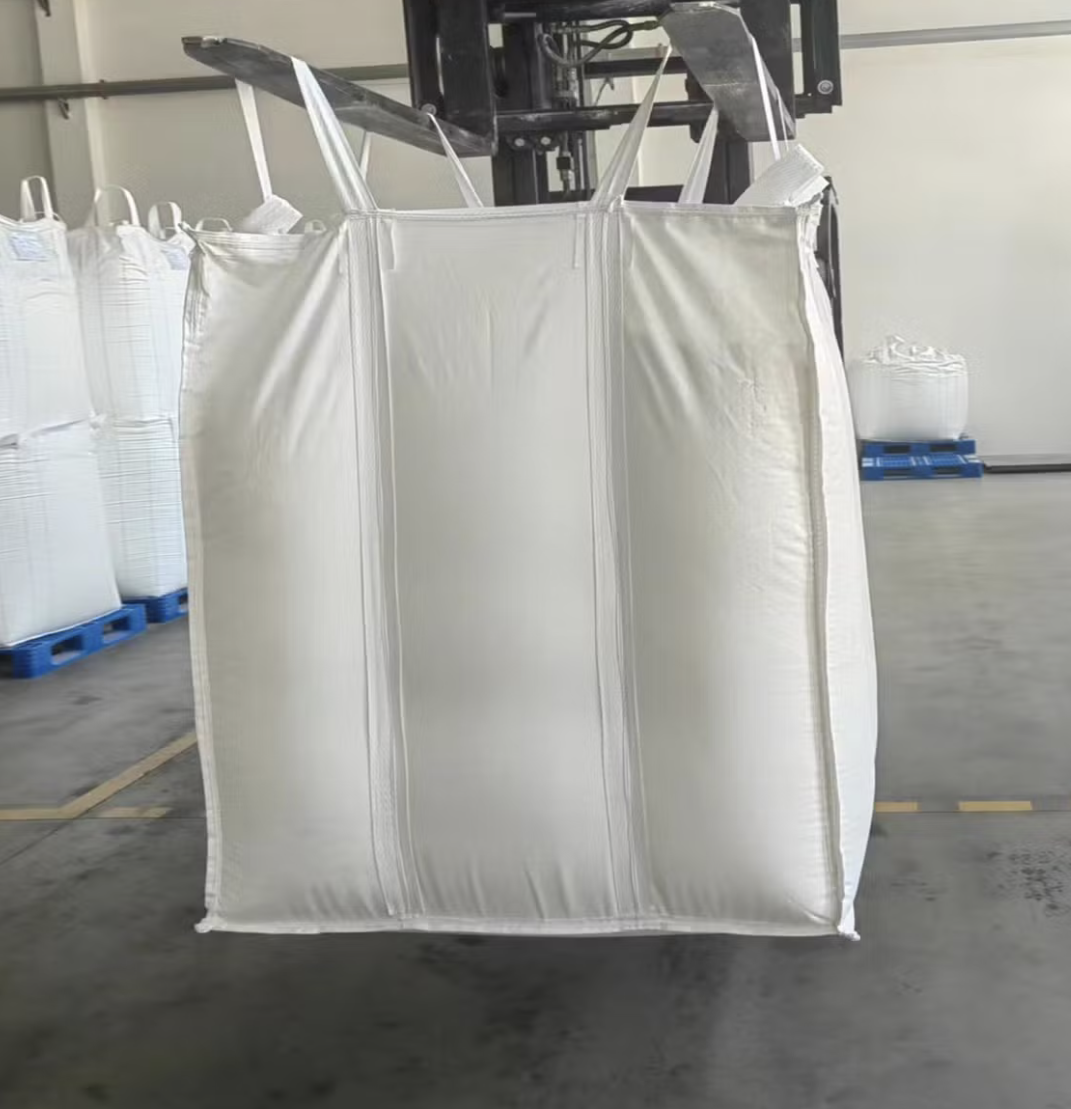

• 25 kg multi‑wall bags (PE‑lined); 500–1,000 kg FIBCs.
• Small packs for R&D and plant trials. |
• Non‑DG. Avoid generating respirable dust; use LEV & PPE.
• Store cool/dry; keep sealed to prevent moisture pick‑up and caking. |
Regulatory: Certain jurisdictions require specific labeling for
TiO₂ powders containing respirable particles. SDS provides
guidance on dust controls and workplace exposure limits.
